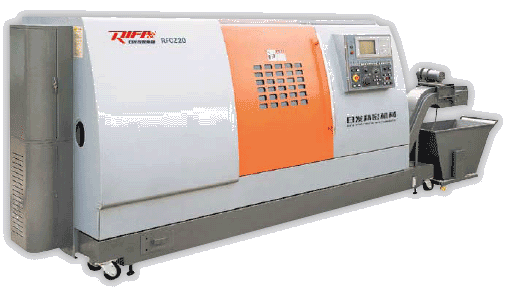

Model RFCZ20 Horizontal Lathe
Standard Equipment
- FANUC Controller
- Isolation Transformer
- Programmable Tailstock
- Chip Conveyor
- Status Light
- Footpetal Clamp/Unclamp
- Spindle Orient
- Air Gun
- Work Light
- RS232 Interface and Cable
- Automatic Central Lubrication System
- Operator Manuals
Specifications |
||||
|---|---|---|---|---|
| Swing Over Bed | 18.90" | |||
| Maximum Machining Diameter | 15.75" | |||
| Maximum Machining Length | 24.80" | |||
| X-Axis Travel | 8.66" | |||
| Z-Axis Travel | 25.59" | |||
| Spindle Motor | 20/25 hp1 | |||
| Maximum Spindle Speed | 4000 rpm | |||
| Rapid Feed Rates | 630/787 (x, y) | |||
| Hydraulic Chuck | 8” | |||
| Tool Number | 12 | |||
| Indexing Time | 0.3 sec | |||
1 max power 30min rating
